Compact with exceptional capacity

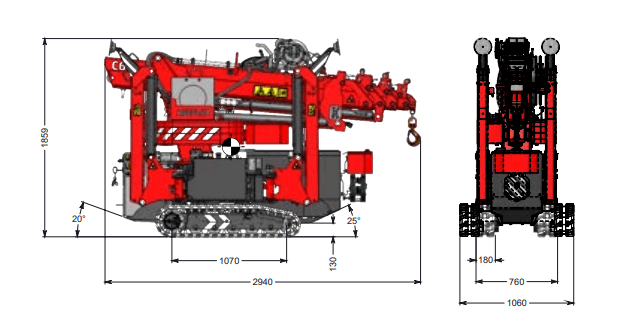

Hire one of the newest mini cranes in the australian market, this little powerhouse weights only 2850kg! The hoeflons slim design of 760mm wide allows it to easily squeeze through those tight spots. Dont be confused with its compact design, its boasts a high capacity 3 tonne MRC & easily extends to a whopping 16.4m vertical reach.
Flyjib
The hydraulic luffing flyjib with 3 telescopic sections allow up-and-over capabilities or even running the fly 15 degress negative to the main boom is a game changer with the hoeflon c6. Great for lifting around obsticles.
outriggers

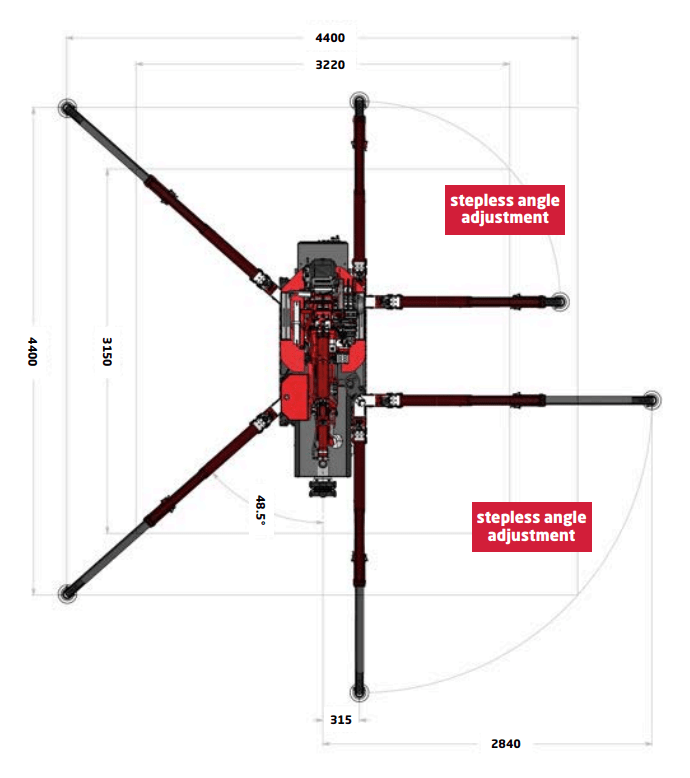

Completely variable outriggers! The crane automatic calculates the load chart to suit the specific setup. The outriggers include folding legs, enabling them to be setup on uneven terrain with a height difference of up to two metres.
winch
40m winch cable allows lifting or dropping loads well bolow the crane. Impressive 1 tonne line pull on single fall, the winch block allows the maximum 3 tonne capacity throug means of reeving. The winch can be used on both the main boom and the flyjib.
manual extension
The manual extension, often known as a sercher hook, can be adjusted to four different positions, and can be used on both the main boom aswell as the flyjib. This configuration is great for lifting in situations with limited head room. The manual section has a capacity of 3 tonne.
counterweight
The Hoeflon c6 can remove its own counterweight without needing any other machines to assist. This feature unlocks massive potential for high rise construction, with the ability to reduce its own weight to 2 tonnes, it can be transported up the building using the internal builders lift or external hoist. Once up the building, reinstalling the counterweight to have full 3t capacity. This is particulary useful when the tower crane has been disasembled but there is still remaining works to complete.
Power
Two options, diesel or electric by means of plugging the crane into a 240v powerpoint. Electric operation is a massive bonus for indoor work, allowing quiter operation & removing any exhaust fumes that may not be able to excape any indoor works. Using diesel is advantagous in those remote areas where there may not be any access to power. Switching between the two is instantaneous and can be done at the press of of button.
tracks
Tracks on the crane can be extended or retracted depending on site constraints. Retracting the tracks for those tight access areas or extending the tracks or added stability on uneven terrain.
Remote Control
The Hoeflon c6 Crane is controlled by a wireless remote control, allowing the operator to move freely around load to gain the best vantage point, creating better accuracy in load movement.
