Capacity
2 Pad Configuration 300kg.
4 pad Configuration 600kg.
6 Pad Configuration 900kg.
8 Pad Configuration 1200kg.
hook Position
Several hook point positions to facilitate verticality of the load.
Lowered hook for installation underneath eaves & ceilings. This can allow the crane arm on a spider crane to be below the glass height for tight installation.

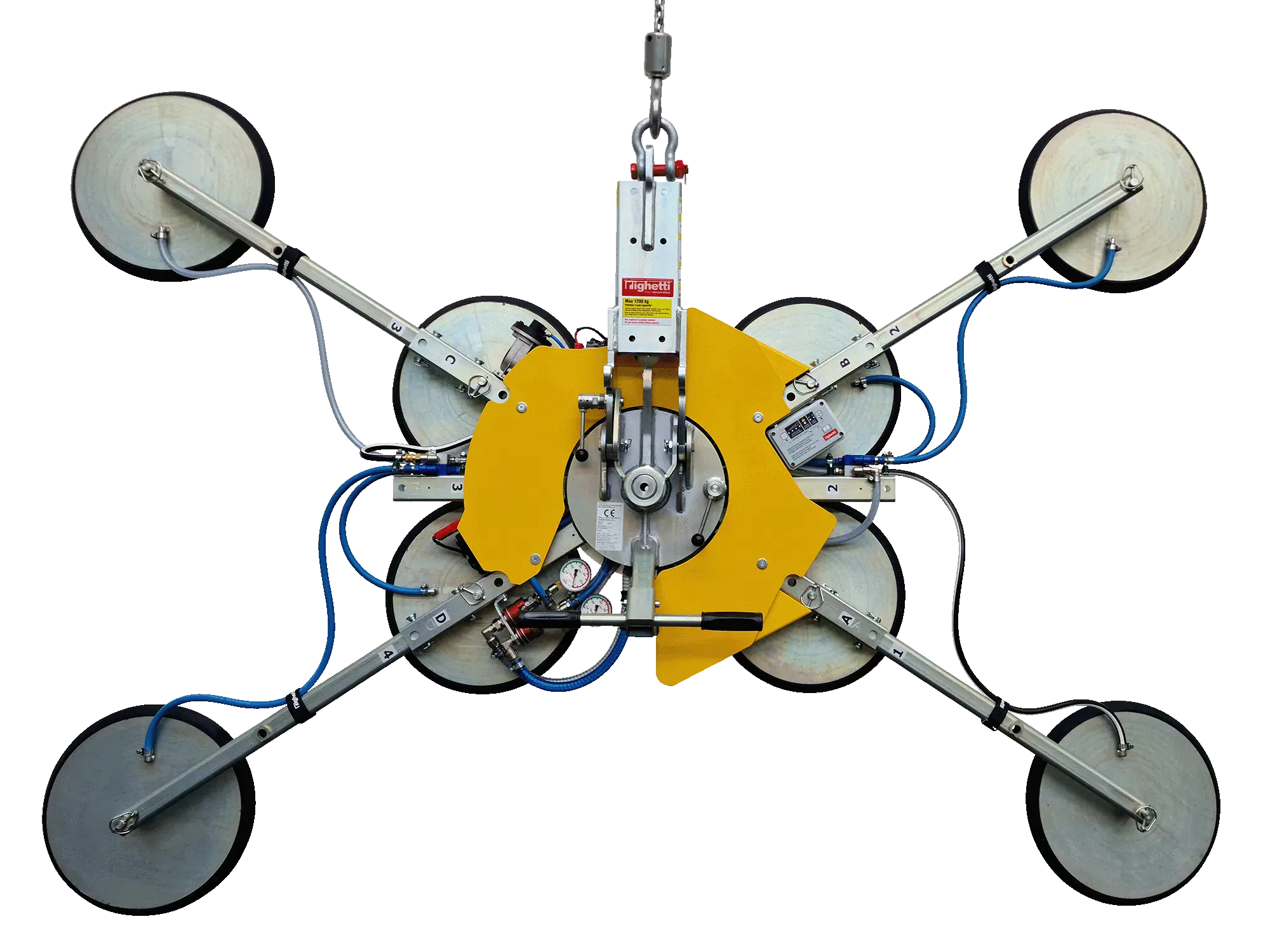

Modular fRAME
This model has 4 central pads and 4 pads on removable arms. Depending on requirements, can change the capacity and spread of the suction pads.
Curved Glass Attachment also available for this Vacuum.
Rotating & Tilting
Rotational Range:360° with four locking positions.
Tilting Range:
0-90° tilting system(horizontal/vertical)
Controlled Tilting:
Controlled Tilting Mechanism allows precise tilting at any angle & ensures full control of movement and millimetric precision when tilting the pane
