Capacity
12 Pad Configuration 400kg.
16 pad Configuration 500kg.
20 Pad Configuration 600kg.
For both Concave & Convex curved glass.
hook Position
Several hook point positions to facilitate verticality of the load.
Lowered hook for installation underneath eaves & ceilings. This can allow the crane arm on a spider crane to be below the glass height for tight installation.
Modular fRAME
This model has 12 central pads and 6 pads on removable arms. Depending on requirements, can change the capacity and spread of the suction pads.
Rotating & Tilting
Rotational Range:360° with four locking positions.
Tilting Range:
0-90° tilting system(horizontal/vertical)

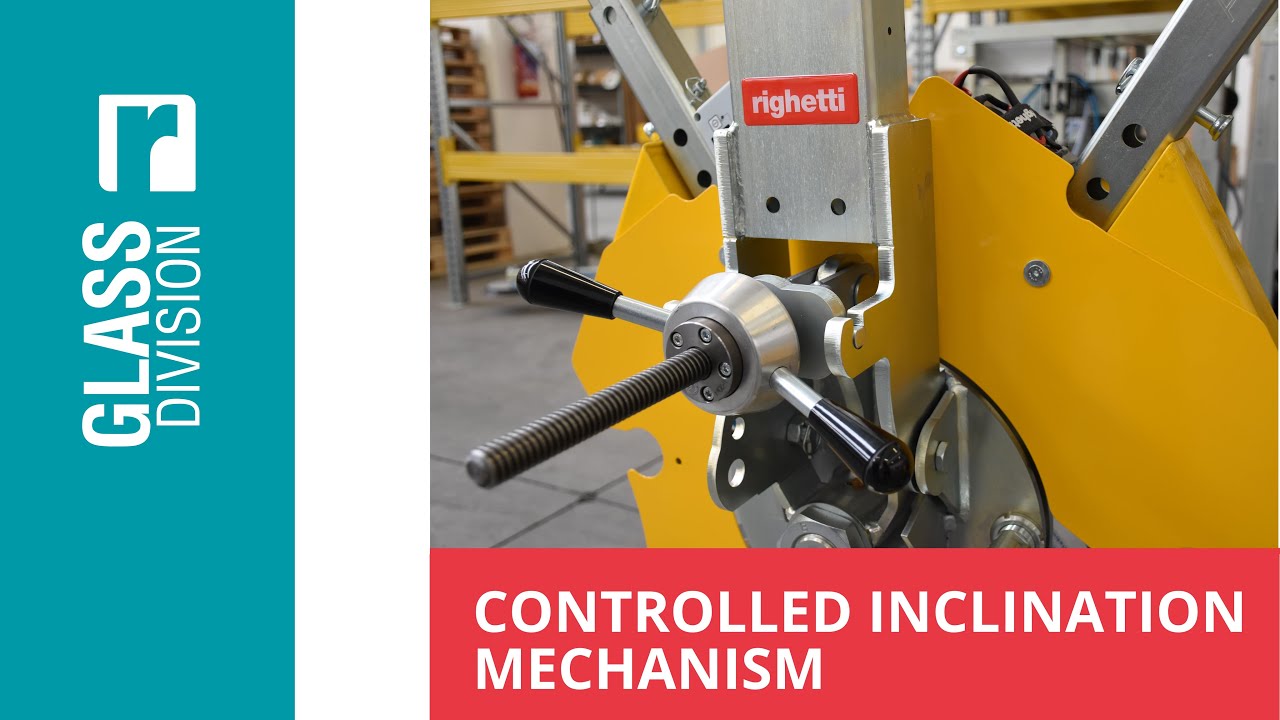

Controlled Tilting:
Controlled Tilting Mechanism allows precise tilting at any angle & ensures full control of movement and millimetric precision when tilting the pane
